Model

P6018A

Division Ratio

1000：1

Pluse voltage

12kVp-p

Input Resistance

200MΩ

Input Capacitor

1.5 pF

Max. DC

18kV/30 sec

Max. AC RMS.

12kV/30 sec

Max. Loading Current

90uA

Band Width

DC-100MHz(-3dB)

Rise Time

3.5 ns

Signal /Noise

>60dB at 1kHz; >50dB at 1MHz

DCV Accuracy

≤3%

ACV Accuracy

≤3% at 60Hz（0-10kV rms），，，，，，5% at 60Hz（10-20kV rms）

Working Temperature

-10~55℃

Working Humidity

≤85%RH

Weight

460g

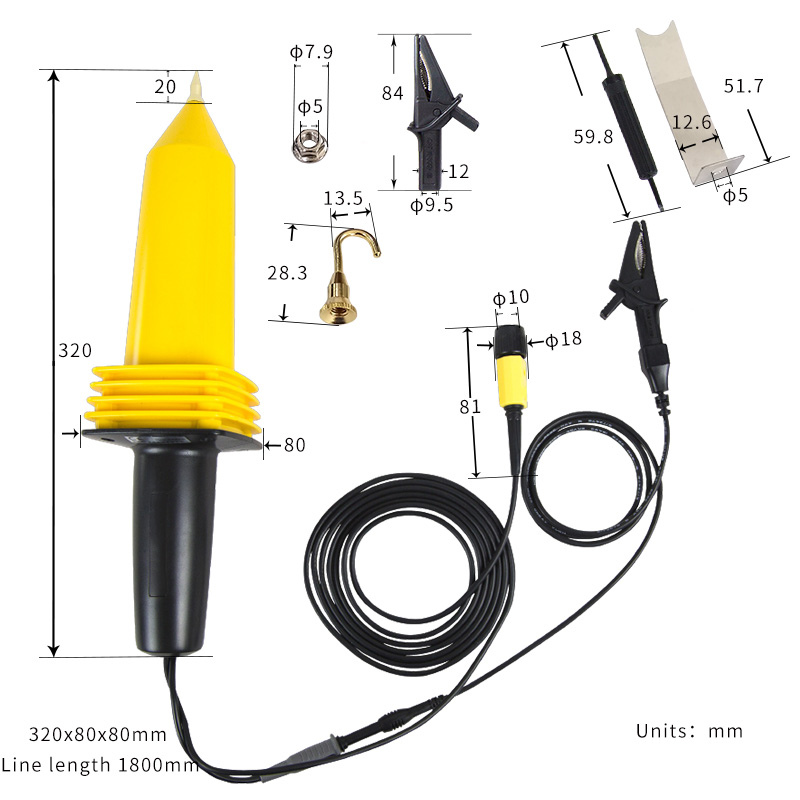

size

80*80*320 mm
