P6010A(10kV,120MHz) high voltage probe

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

P6010A (10kV,120MHz)high-voltage probe High Sensitivity in the oscilloscope observation, this kind of oscilloscope is ten times sensitivitythan traditional high pressure bar

Brand PINTECH

Model P6010A

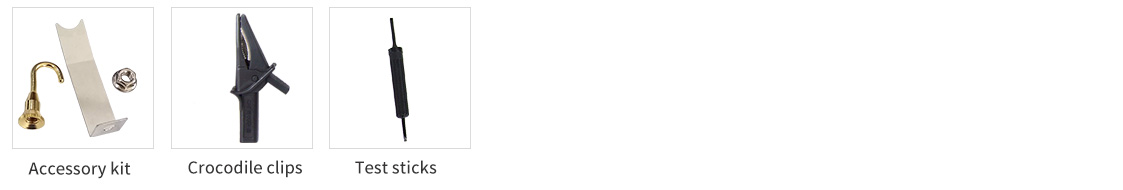

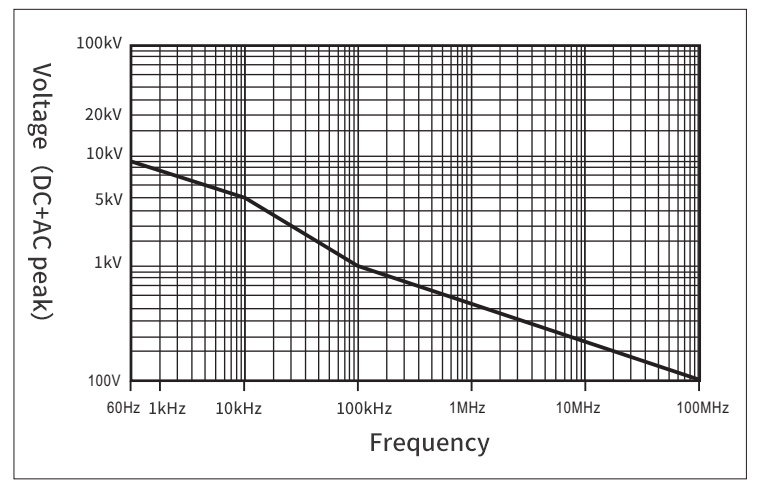

DetailDimension drawingFrequency diagramAccessory detail

Model	P6010A
Division Ratio	100：1
Max. pulse voltage	7kVp-p
Input Resistance	100MΩ
Input Capacitor	2.0 pF
Max. DC	10kV/30 sec
Max. AC RMS.	7kV/30 sec
Max. Loading Current	100uA
Band Width	DC-120MHz
Rise Time	3.0 ns
Signal /Noise	>60dB at 1kHz; >50dB at 1MHz
DCV Accuracy	≦3%
ACV Accuracy	≤3% at 60Hz（0-10kV rms），，，，，，，5% at 60Hz（10-20kV rms）
Working Temperature	-10~55℃
Working Humidity	≤85%RH
Weight	460g
size	8080320mm
