P6008(8kV,40MHz)high-voltage probe

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

P6008(8kV,40MHz)high-voltage probe Short Description： Mini Type Attenuation ratio: 1:1000 Input impedance: 100MΩ//3PF

Brand PINTECH

Model P6008

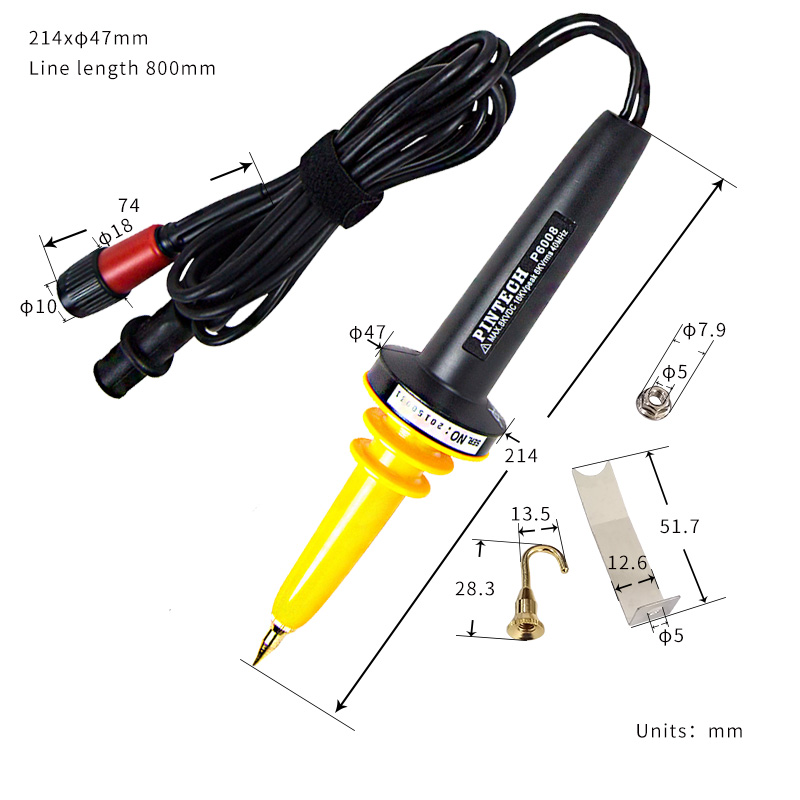

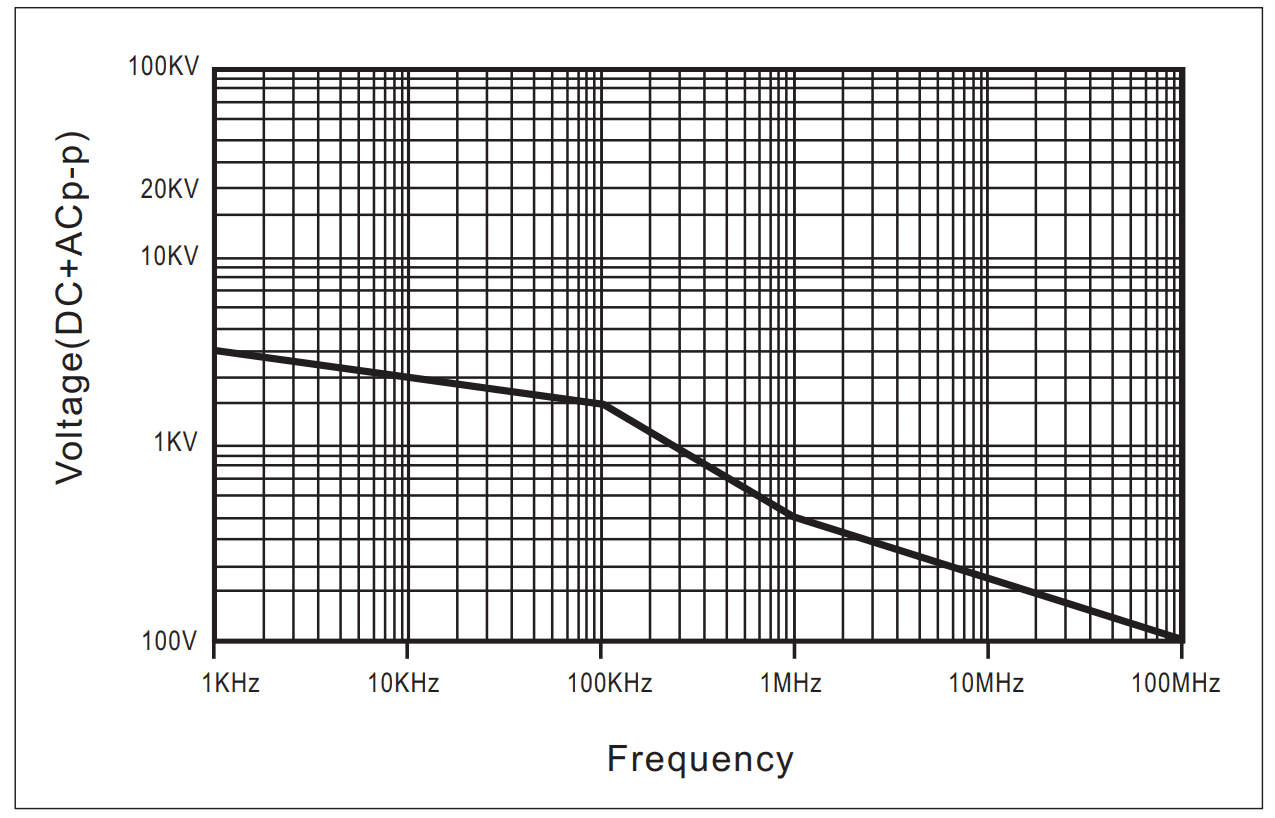

DetailDimension drawingFrequency diagramAccessory detail

Send E-mail to get more information: sales@pintech.com.cn

Max.Working Voltage		DC:0～8kV DC AC:≦16kVpeak to peak AC:≦6kV rms
Single/Noise		DC≧60dB(1kHz),≧50dB(1MHz)
Bandwidth		DC-40MHz(-3dB)
Division Ratio		1:1000
Rise Time		≦9ns
Input Resistance		100MΩ±5%
Input Capacitance		3.0pF±0.5pF
Compensation Range		5pF～50pF
Cable Length		2.0meter(±0.2M)
Temperature Coefficient		≦200PPM/℃
Accuracy	DC	±2%(DC to 5kV)；；；；；；；；±3%(＞5kV)
	AC	±3%(1kHz/1kV)；；；；；；；；-3dB 40MHz
Operating Temperature		0～50℃
Storage Temperature		-20～+70℃
Working Humidity		≤85%RH
Weigh		180g
size		Φ47*215mm
